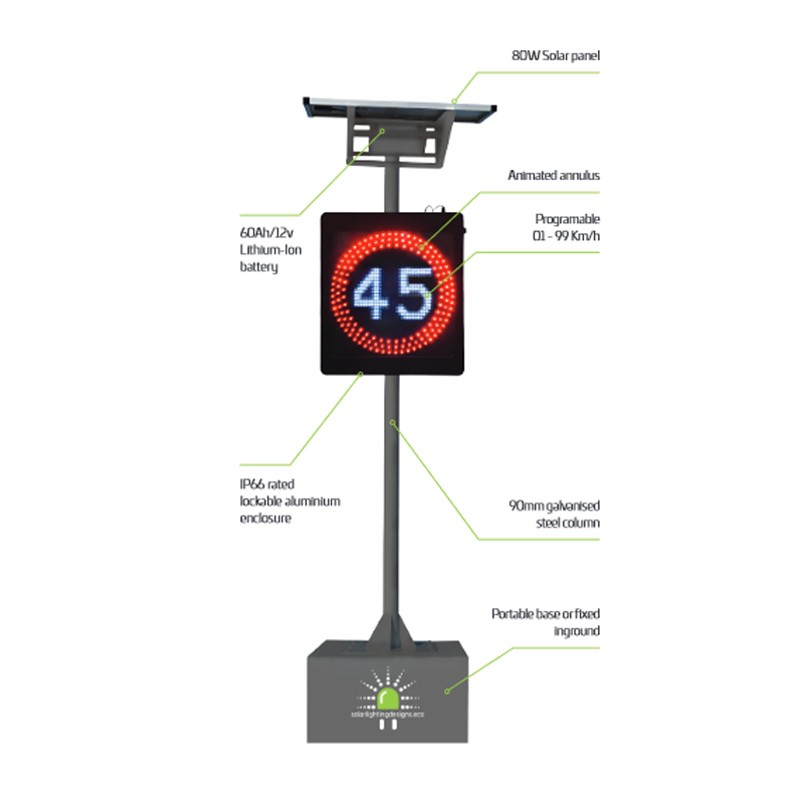

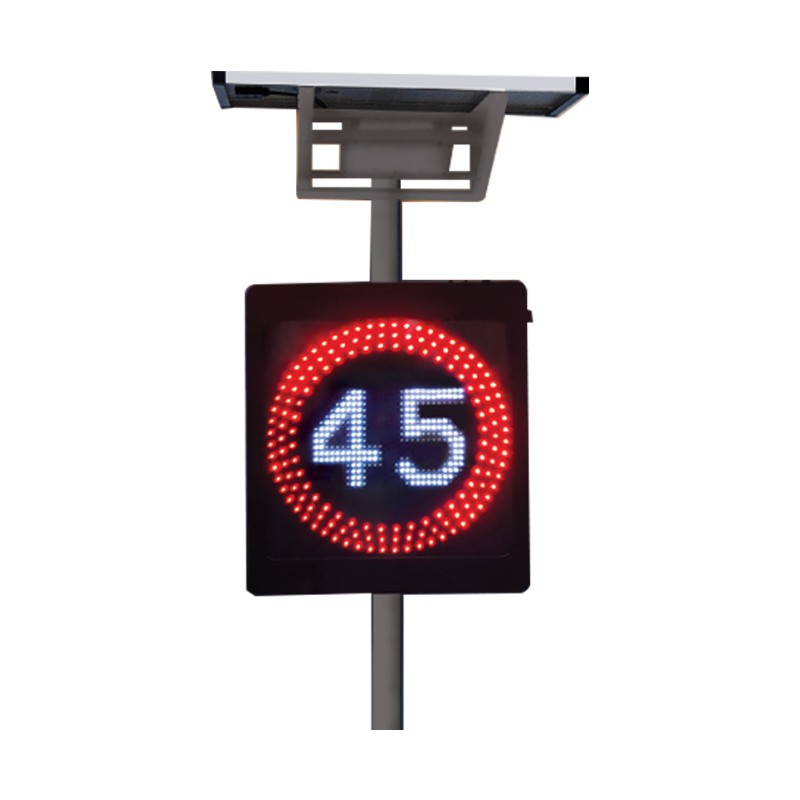

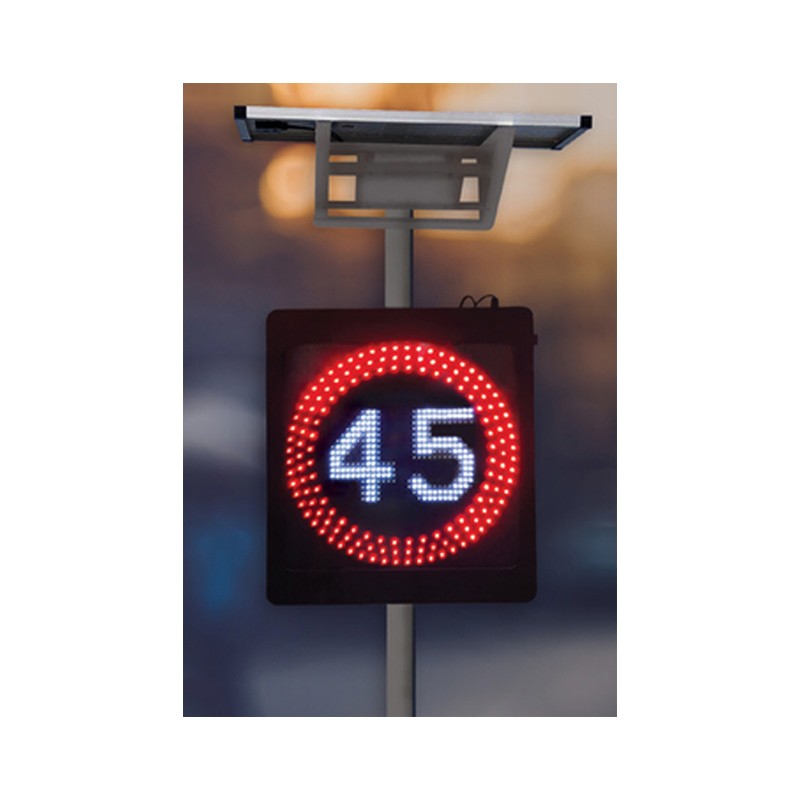

SOLAR VARIABLE SPEED LIMIT SIGN

Ultra-bright, weatherproof, vandal resistant full dot matrix display
3 rows of programmable animated annulus in red
Increase the visibility of the message and improve safety
>Reduces the speed of traffic by enforcing the awareness of speed limit
>96 hours autonomy
IP66 Waterproof design
IK10 Impact resistant polycarbonate screen
Powdercoated and lockable enclosure
Simple to install – Secures to a 90mm post
Efficient and effective visual enforcement
High visibility animated LED display
Portable or fixed versions available
2 year warranty for faulty workmanship or component failure not influenced by external means.

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

SOLAR VARIABLE SPEED LIMIT SIGN

The Solar variable speed limit sign utilises ultra-bright, high quality and long-life LED technology to provide a highly visual, animated enforcement of the designated speed limit with a proven ability to influence driver behaviour. The remote allows control over the full dot matrix display area to change the posted speed limit between 01 – 99 Km/h and the animation of the annulus (red rings) Typically installed in areas where vehicles are in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campus. The unit is available in either a fixed or portable version. The minimal current draw allows the variable speed limit sign to be simply and effectively operated using solar energy. The auto dimming feature ensures consistency of LED brightness day or night and further conserves battery life.

Technical Data

SKU	SVSLS01

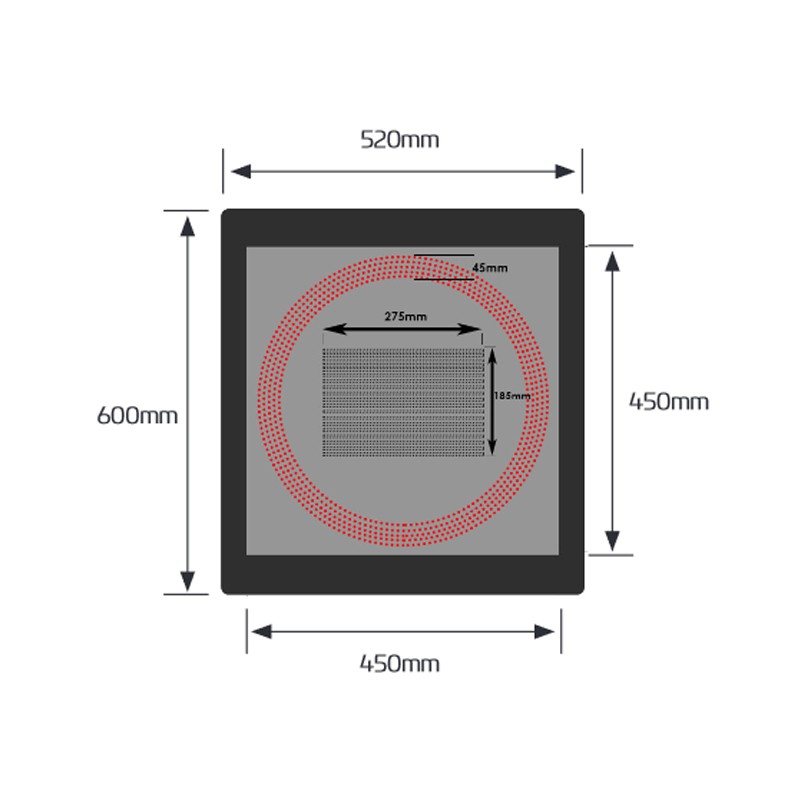

LED Screen	460 x 460mm
Sign Frame	520 x 600 x 90mm
Display Colour	Red Annulus/White numerals
Solar panel Wattage	80W
LED Output	Variable
Lumen Output	Automatic variable/span>
Battery Type	Lithium – Ion
Battery Specifications	(720Wh) 60AH 12V
Autonomy	> 5 Nights, setting dependent
Light Source	190 x SMD LED
Radar Range	1 – 150 Mtrs
Recharge	6 hours
Mounting Height	2.1 – 3 metres
Standard mounting	90mm galvanised steel column
Finish	Powdercoated aluminum
Warranty Period	2 years

Printable PDF Date Sheets

SPEED LIMIT SIGN SPECIFICATION

Additional Information

OPERATIONAL MODESContinuous operation day and night. Remote controlled change of the speed limit and the animation of the annulus (red rings).

WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.

FAMILIAR EXAMPLES

A typical 4 x D cell battery maglite will emit approx. 70 lumens
The average path light using 2-3 LEDs emits 15-18 lumens
A 25W incandescent globe emits approximately 160 lumens
