SOLAR BILLBOARD LIGHTING – TWIN

Stylish and functional solar lighting

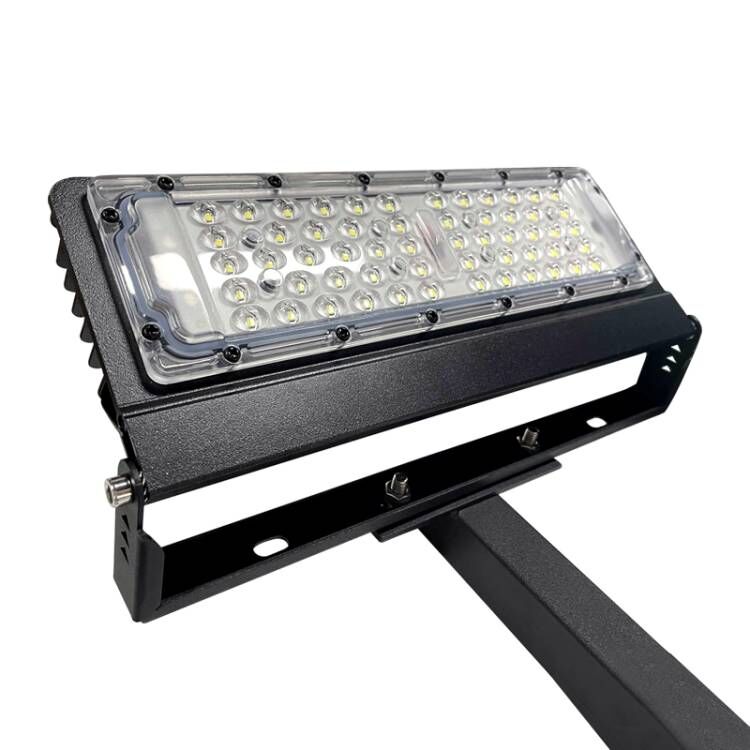

Pivoting LED modules deliver lighting control
Smart lighting programmed Mode of Operation
Automatic dusk to dawn lighting
Ideal from small to medium billboards and signs
210 lumen/watt LED output

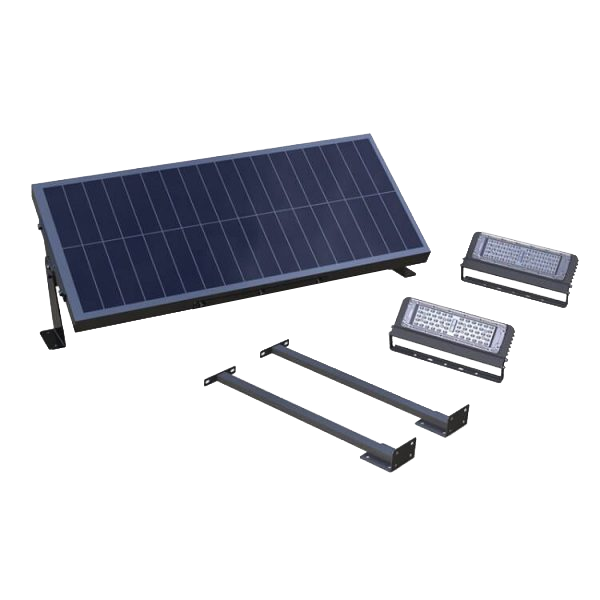

Integrated all-in-one design
Premium-grade solar lighting. Fully sealed aluminium body in a powder coated black finish

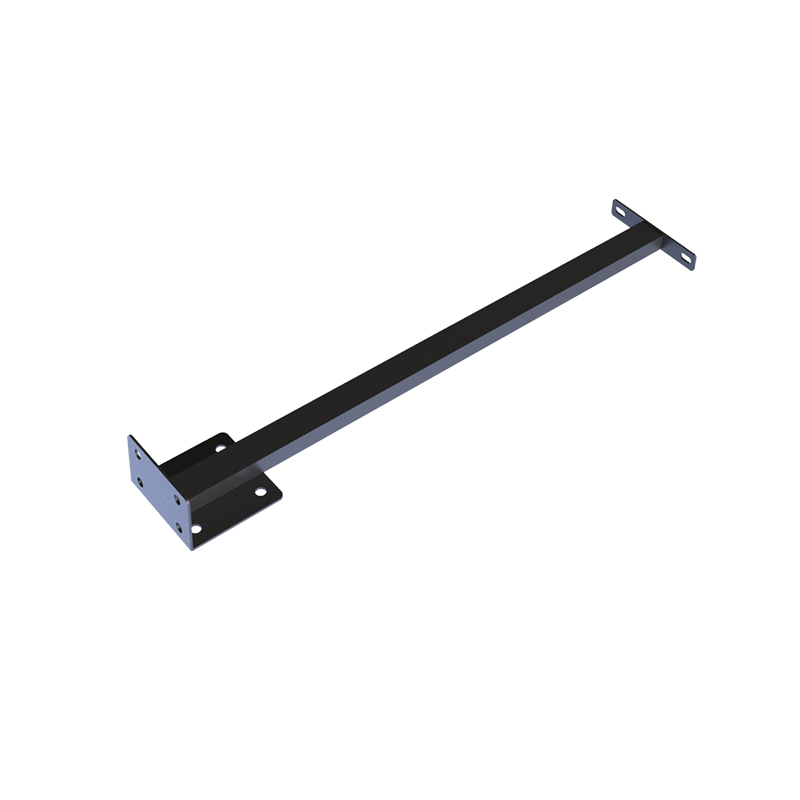

Custom brackets or powder coated poles manufactured on request
2 year warranty for faulty workmanship or component failure not influenced by external means

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

SOLAR BILLBOARD LIGHTING – TWIN

Solar Lighting Design commercial grade solar billboard and sign lights are a simple and efficient method of illuminating billboards, entry statements, advertising and building entry signage without connection to mains power. We offer several lighting solutions that will illuminate billboards of most sizes and designs. The lights automatically illuminate at dusk to follow intelligent programmed mode of operation ensuring the message is visible from dusk to dawn. Our solar billboard lights are plug and play systems that can be installed quickly without the need for an electrician. The product is supplied with all necessary equipment for most installations including solar panel, high quality LiFeP04 batteries, battery enclosure, charge controller, mounting brackets and highly efficient, pivoting LED fixtures that allow for lighting from above or below.

Technical Data

SKU	SOLLBB/30
Solar Panel Wattage	50W
LED OUTPUT	15W per light
LUMEN OUTPUT	3150lm per light
BATTERY TYPE	LiFePO4
BATTERY SPECS	384Wh
AUTONOMY	2 – 3 nights on a full charge
Correlated Colour Temp (CCT)	6000K
Fixture Size	350 (I) x 780 (W) x 25 (D) mm
Light Source	Philips LED
Recharge	4 – 5 hours
Mounting Height	Various
Mounting	Mounting above or below sign face
Finish	Moulded polycarbonate
Warranty Period	2 years

Printable Data Sheets

Solar Billboard Lighting – Twin Data Sheet

Additional Information

OPERATIONAL MODES

Default program – Auto ON at dusk. 100% output for 2 hours, 80% output for 3 hours then 25% for 7 hours or until dawn, whichever is first.

WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.

FAMILIAR EXAMPLES

A typical 4 x D cell battery maglite will emit approx. 70 lumens
The average path light using 2-3 LEDs emits 15-18 lumens
A 25W incandescent globe emits approximately 160 lumens
