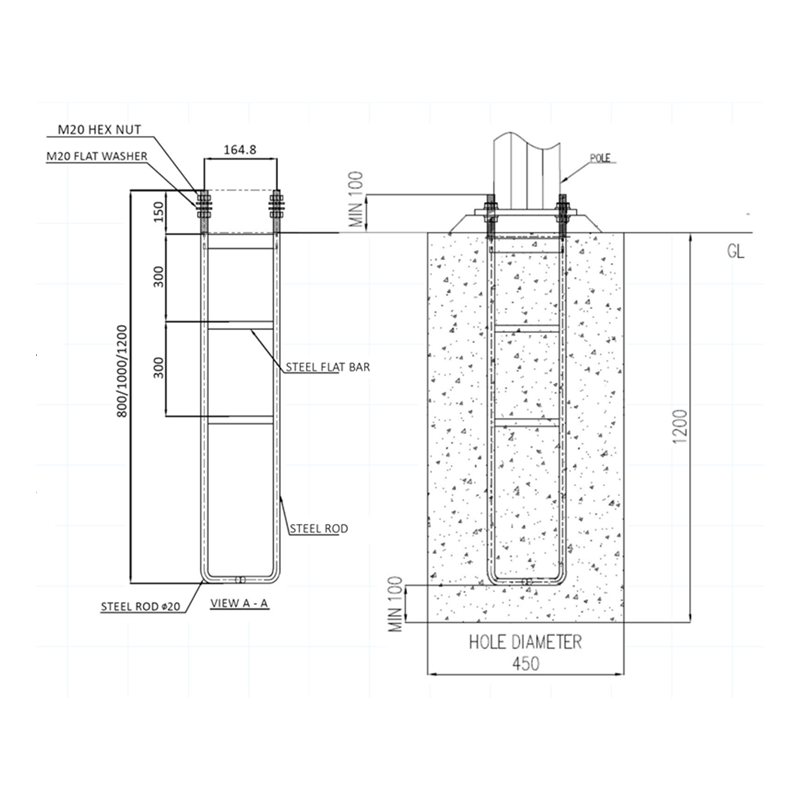

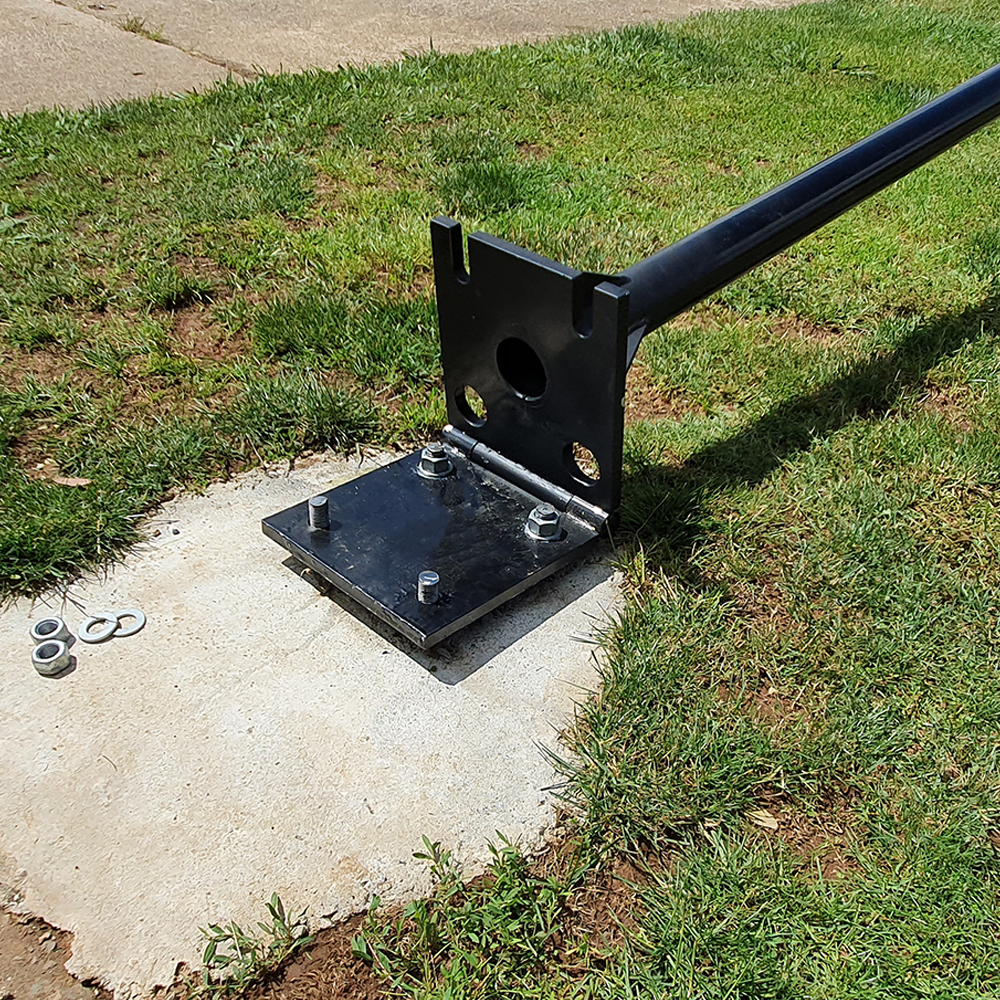

SLD M20 FOUNDATION CAGE

Foundation bolt/cage to be fully welded construction in accordance with AS1554.1 weld symbols comply with AS1103.3
Hot dip galvanised after fabrication
Concrete to have a minimum characteristic strength of 32MPa or 40MPa where an exposure classification of moderate is determined
Minimum clear concrete cover to be 65mm
All concrete shall be placed and vibrated to optimum compaction
Pile casings to be used for constructions purposes where required
Engineering advice is to be sort where soils are assessed to be of exposure classification severe or greater
Soil classification to be determined by a geotechnical engineer

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

SLD M20 FOUNDATION CAGE

This table is to be used as a guide only. All pile specifications should be confirmed with an appropriately qualified engineer prior to construction. M20 Foundation bolt/cage assembly on 233mm PCD. Based on average soil conditions. Certification by others.

Technical Data

SKU	SLDRBC001
Soil Type As defined in AS/NZS 4676: 2000 Appendix	Firm Damp Clays; Sandy Clays; Damp Sands Fb > 100KPa
Pile Diameter	450mm
Pile Length	1200mm
Cage Bolt Assembly	M20

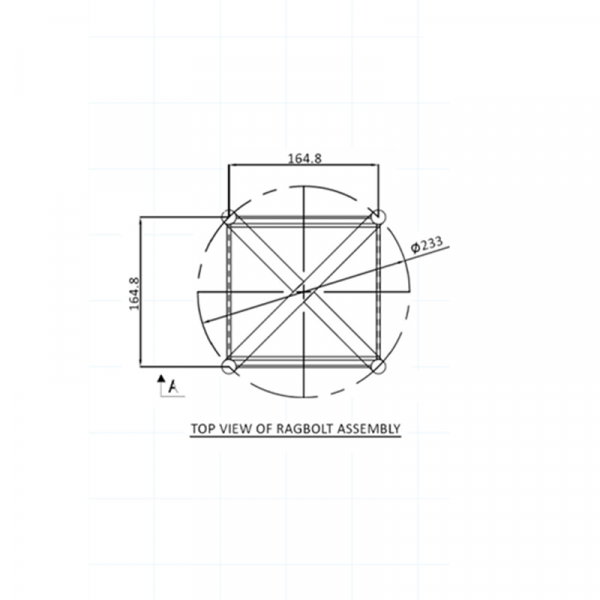

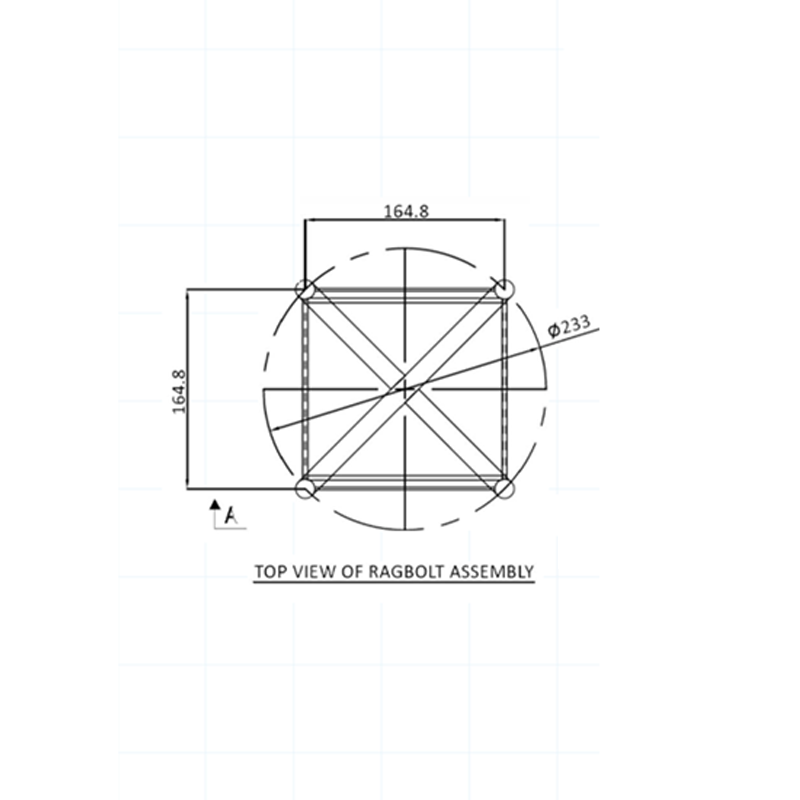

Bolt Pattern	4 M20 on 233 PCD
Ultimate Base Moment	10.1 kNm
Ultimate Base Shear	2.5 KN

Printable PDF Data Sheets

SLD M20 Foundation Cage Data Sheet

Additional Information
