FIXED LIGHTING COLUMNS

Hot-dip galvanised after manufacture
Optional powdercoated finish
Optional two piece construction for ease of transport
Stainless steel version available
Custom light brackets available
Baseplate covers included
Engineer certified hinged column maximum load capacity to 20Kg
Engineer certified AS/NZS 1170.2:2011 for Wind Regions A, B, C
Engineer certified foundation/rag bolt assembly and footing design

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

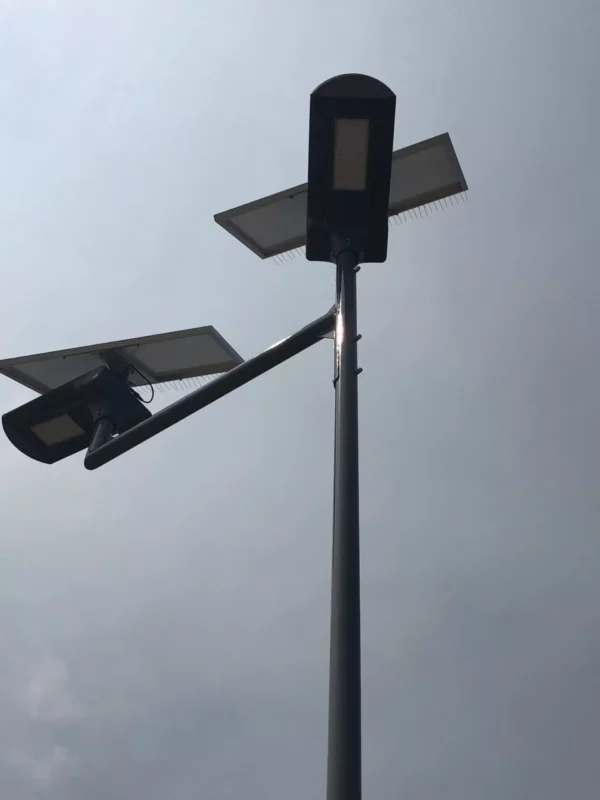

FIXED LIGHTING COLUMNS

The SLD Engineered fixed lighting columns range in height from 3 mtrs to 12 mtrs. Baseplated as standard although in-ground versions can be designed. The street lighting pole is available in tapered round or tapered octagonal. All poles are hot dip galvanised to AS/NZS 4680:2006, and can be powder coated. The range is available in a single, double, and triple outreach arm arrangement. Custom configurations and dimensions are available. See the attached drawing for full specifications – See attached data sheets and drawings

Technical Data

SKU	SLDFLC
Height	3000mm – 12000mm
Column Diameter	110mm diameter base post – taper to 90mm diameter at top
Spigot Diameter	76mm Diameter
Finish	Galvanised or Powdercoat Finish
Powder Coating	Optional
Wind Rating Certification	Engineer certified AS/NZS 1170.2:2011 for Wind Regions A, B, C
Load Rating	Engineer certified hinged column maximum load capacity to 20Kg
Foundation/Rag Bolt Cage	Engineer certified foundation/rag bolt assembly and footing design

Printable Data sheets

Ragbolt Cage Data Sheet

Fixed Column Data Sheet

Spigot Adapter Bracket Specifications

Single and Dual Mount Outreach Arm Data Specifications

Four Way Outreach Arms Specifications
