ERIS ASYMMETRICAL SOLAR BOLLARD

Asymmetrical light pattern suitable for pathways, walkways and garden beds
Internal baseplate for clean installed design
Designed with smart power saving technology
Internal baseplate for clean installed design
Simple twist and lock assembly
>3 nights autonomy
IP65 Waterproof design
Premium grade solar bollard lighting
Automatic dusk to dawn lighting
2 year warranty for faulty workmanship or component failure not influenced by external means

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

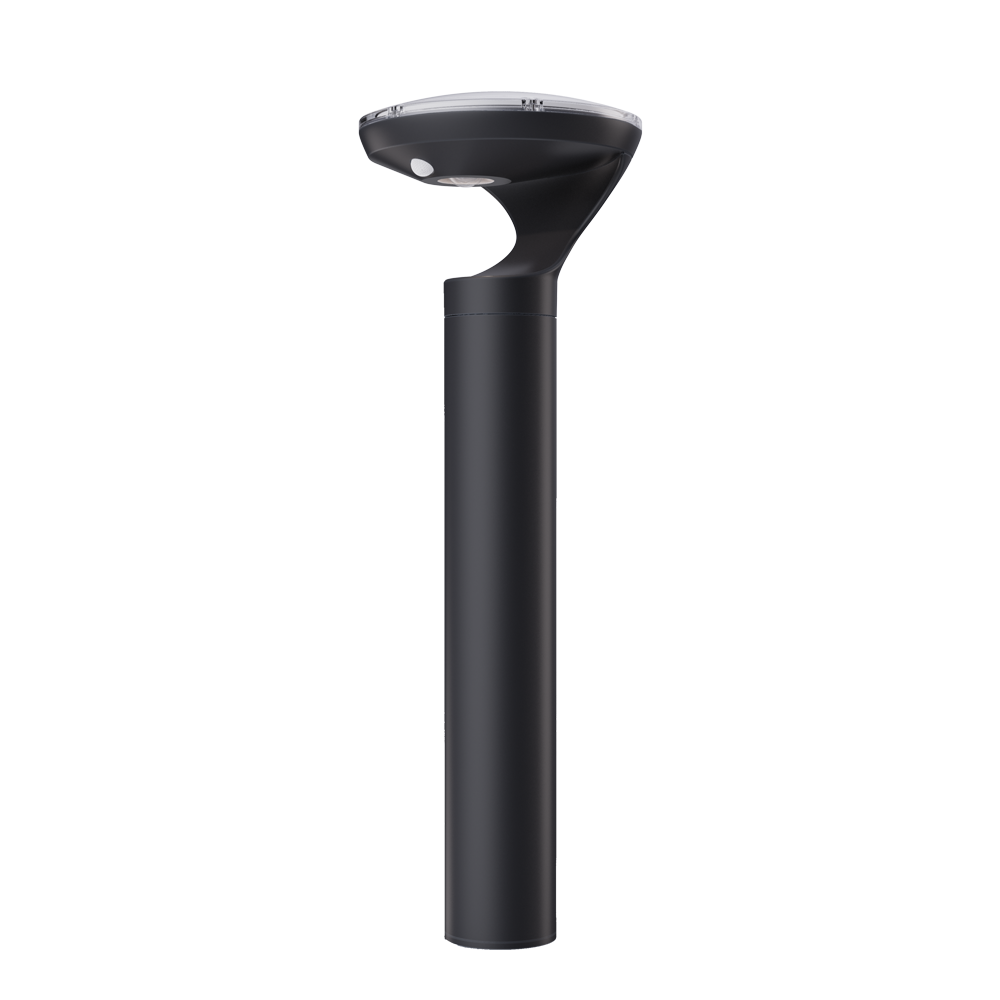

ERIS ASYMMETRICAL SOLAR BOLLARD

The Eris Asymmetrical Solar Bollard is an automatic dusk till - dawn operating solar bollard, with an asymmetrical lighting pattern purpose designed for pathways, walkways, and garden beds. This premium product combines a sleek, aesthetic design with functional tamper resistant features. The reinforced aluminium manufacture, hidden on/off switch, internally locking baseplate and P65 rated waterproofing ensures this commercial product is suitable for public environments. Operating using a PIR motion sensor, the bollard increases the light output as you approach and dims as you pass, ensuring maximum output is available when required while providing ambient light and retaining battery charge when full output is not necessary.

Technical Data

SKU	SOLB017
Solar Panel Wattage	6.2W
LED Output	1.5W
C.C.T	4000K
Lumen Output	~280 lm
Battery Type	LiFeP04
Battery Specifications	12AH 3.2V (38.4Wh)
AUTONOMY	> 3 nights
Fixture Size	800mm x 275mm
Light Source	SMD3030
Recharge	4-6 hours
Mounting Height	800mm
Mounting	Internal Baseplate
Finish	Powder-coated black (standard)
Warranty Period	2 years

Lighting Distributions

Printable PDF Data Sheets

Eris Asymmetrical Solar Bollard Data Sheet

Additional Information

MODE OF OPERATIONHidden switch , Warm (3000k) or cool (6000k) LED CCT (colour) selectable + ON/OFF functions.CCTV records to internal SD card 24/7.WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.FAMILIAR EXAMPLES

A typical 4 x D cell battery maglite will emit approx. 70 lumens
The average path light using 2-3 LEDs emits 15-18 lumens
A 25W incandescent globe emits approximately 160 lumens
