BLADE 40W SOLAR LIGHT V2

Stylish and functional solar lighting
Pivoting LED modules deliver lighting control
Programmable smart lighting
Pre-installed IOT capability
Ideal for illuminating paths, cycleways, and medium size areas
190 lumen/watt LED output
Integrated all-in-one design
Mounting height of 4 – 8 metres
Fully sealed cast aluminium body in a powder coated black finish
Custom brackets or powder coated poles manufactured on request
10 year warranty for faulty workmanship or component failure not influenced by external means

Product

Solar
Lighting
Designs

Solar Lighting Designs

©2024

Product Description.

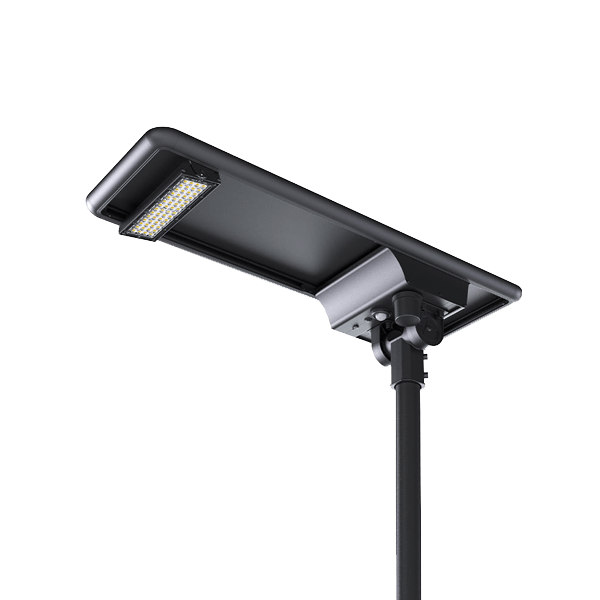

BLADE 40W SOLAR LIGHT V2

The SLD Blade range offers all-in-one, stylish, and functional solar lighting. Independently pivoting LED modules permit full control over the direction and distribution of the lighting pattern and if required allows panel to be orientated for maximum photovoltaic conversion. Our custom designed MPPT solar charge controller has IOT capability pre-installed and is initiated by adding a network gateway. Bird spikes and post mount brackets standard features. The balance of a premium LiFePO4 battery combined with the exceptional light output achieved by 195 lumen/watt Phillips LED’s, all controlled by a programmable smart lighting program, delivers superior dusk to dawn lighting and high levels of autonomy.

Technical Data

SKU	SOLL40/BV2
Solar Panel Wattage	48W
LED OUTPUT	40W
LUMEN OUTPUT	7371 lm
BATTERY TYPE	LiFePO4
BATTERY SPECS	12.8V 24AH (307.2Wh)
AUTONOMY	>5 nights
Correlated Colour Temp (CCT)	6000K
Fixture Size	1103 (I) x 365 (w) x 211 (h) mm
Light Source	Philips 5050 LED
Recharge	Setting Dependant
Mounting Height	5 – 7 metres
Mounting	60mm column – 60mm spigot
Finish	Powder coat satin black
Warranty Period	5 years

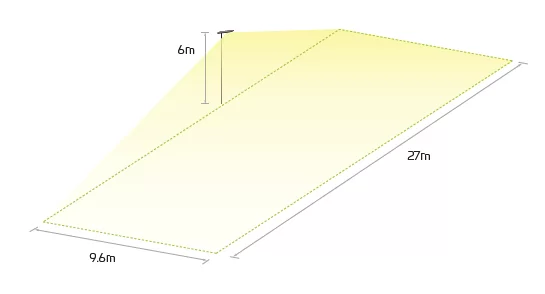

Lighting Distributions

Video

Printable Data Sheets

40W-Blade-Specification

Additional Information

OPERATIONAL MODES

Default program – The P.I.R. (Passive infrared) sensor is activated by movement and acts as an energy saving feature. The unit will operate at 30% output adjusting to 100% output when the PIR is activated, returning to 30% output when no movement is detected.

Custom Programming – Custom lighting programs to suit specific lighting requirements.

WHAT IS A LUMEN?

In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.

FAMILIAR EXAMPLES

A typical 4 x D cell battery maglite will emit approx. 70 lumens
The average path light using 2-3 LEDs emits 15-18 lumens
A 25W incandescent globe emits approximately 160 lumens

Projects using this product

Wooloware Golf Club

Woolooware Golf Club reached out to us as they required solar...

FDC Construction & Fitout

FDC have been constructing several large warehouses for a new industrial area in Erskine Park...

NSW Mini Golf Course

A mini golf course in Rural NSW approached us in need of lighting for their newly built course...

City of Cockburn Park Lighting Project

The City of Cockburn contacted us regarding a need for walkway..

"Great solution for removing a diesel powered lighting plant and utilise solar for our water fill point and working towards reducing our carbon emissions.“

ian murray - thiess pty ltd

" The Solar Batten Lights worked out really well in the BBQ area with a quick install time and the finished product looks very professional. (see images on our projects page) .“

Kevin – Burdekin Shire Council

" The 60w Atlas are installed and they are great (see images on our projects page) "

Ben – Darwin Turf Club

"We have installed the first batch of Orion Premium solar lights at our development, and they look great. (see images on our projects page) "

Kelvin – MMG Property

" Easy to install, very impressed with the light output from the 30watt batten light fitting and will definitely purchase again "

Steve Parker – Stanke Group

" These days it's so hard to find a company with excellence in customer service. Your company epitomises this. It makes me so proud to be Australian when we have companies servicing us like yours. Well done "

Mark and Pauline Starkey

" We installed the Alpha 6 Courtyard light. We are all so happy with it. Apart from looking good, it has the perfect amount of light, and it automatically turns on every evening. It was easy to install & gives us all a sense of security. (see images on our projects page) "

Pam Hailey

" Excellent product. We are very happy with the security lights we had chosen to be installed around our church. All parishioners who come to our evening masses really liked the quality. Customer service was also excellent! "

Fr. Belonio – Holy Spirit Parish, St Clair NSW

" In researching backyard lighting options, I discovered Solar Lighting Design and had a chat with their team. Deriving a confident assurance of the obvious experience and knowledge that they had in solar lighting applications, I took the punt and ordered three Orion solar lights. That was three years ago. Those lights have not missed a beat. They have functioned exactly in the manner described. Just recently, and looking to enhance other outside areas, I again reached out and ordered another eight Orion lights. I could not recommend Solar Lighting Design or their products more highly. "

Michael Sirr – Canberra

" Recently purchased 5 Orion Solar Bollard 80cm black Solar lights from Solar lighting designs. These lights were to replace 12v electric units around our pool and barbecue area in a unit complex. Quality of units are exceptional, that area only receives particle sunlight during the day, yet lights last all night. Service was also great. I originally purchased 3 as a test but soon went back for an additional 2. I will look to expand as we make changes to our complex. "

Garry Hinds – Beach House on Suttons Redcliffe Queensland

" Custom compliant design, Excellent service, quality products, ease of install, no need for trenching, on our project alone saved 450 m trenching. Very discreet black finish blends into the rural landscape and the staged light operation levels suit the business perfectly. Your business should have a bright future "

Lachie Badham - PCM Milton

" Recently installed Defender Wi-Fi Solar Security Camera. I was assisted in setting up the Wi-Fi by a very patient Technician, as I am not very confident in doing this. After sales service was excellent, and again patiently answered my many questions. Image quality is excellent, and sensitivity to image capture is exactly what is needed. The security light for night use is excellent. "

Steve Egan

" Had great customer service experience with consistent communication during purchasing. One of the products I was inquiring about was not in stock, but Sam from sales provided me with great alternatives. The lights I purchased look modern and great, easy to install and work perfect. Our resort is so impressed that we are looking at purchasing a much larger order to completely refit both of our resorts. 10/10 "

Chris Watson – The Crossing Inn

" Excellent product. We are very happy with the security lights we had chosen to be installed around our church. All parishioners who come to our evening masses really liked the quality. Customer service was also excellent! "

Fr. Michael Belonio – Holy Spirit Parish

"This is not the first time our organisation has used the services of Solar Lighting Designs; we keep coming back to them because the prompt service delivery and hassle free after sales service is second to none. "

Lindsay – Wollondilly Shire Council

"This is not the first time our organisation has used the services of Solar Lighting Designs; we keep coming back to them because the prompt service delivery and hassle free after sales service is second to none. "

Lindsay – Wollondilly Shire Council

" Excellent product. We are very happy with the security lights we had chosen to be installed around our church. All parishioners who come to our evening masses really liked the quality. Customer service was also excellent! "

Fr. Michael Belonio – Holy Spirit Parish

" Had great customer service experience with consistent communication during purchasing. One of the products I was inquiring about was not in stock, but Sam from sales provided me with great alternatives. The lights I purchased look modern and great, easy to install and work perfect. Our resort is so impressed that we are looking at purchasing a much larger order to completely refit both of our resorts. 10/10 "

Chris Watson – The Crossing Inn

" Recently installed Defender Wi-Fi Solar Security Camera. I was assisted in setting up the Wi-Fi by a very patient Technician, as I am not very confident in doing this. After sales service was excellent, and again patiently answered my many questions. Image quality is excellent, and sensitivity to image capture is exactly what is needed. The security light for night use is excellent. "

Steve Egan

" Custom compliant design, Excellent service, quality products, ease of install, no need for trenching, on our project alone saved 450 m trenching. Very discreet black finish blends into the rural landscape and the staged light operation levels suit the business perfectly. Your business should have a bright future "

Lachie Badham - PCM Milton

" Recently purchased 5 Orion Solar Bollard 80cm black Solar lights from Solar lighting designs. These lights were to replace 12v electric units around our pool and barbecue area in a unit complex. Quality of units are exceptional, that area only receives particle sunlight during the day, yet lights last all night. Service was also great. I originally purchased 3 as a test but soon went back for an additional 2. I will look to expand as we make changes to our complex. "

Garry Hinds – Beach House on Suttons Redcliffe Queensland

" In researching backyard lighting options, I discovered Solar Lighting Design and had a chat with their team. Deriving a confident assurance of the obvious experience and knowledge that they had in solar lighting applications, I took the punt and ordered three Orion solar lights. That was three years ago. Those lights have not missed a beat. They have functioned exactly in the manner described. Just recently, and looking to enhance other outside areas, I again reached out and ordered another eight Orion lights. I could not recommend Solar Lighting Design or their products more highly. "

Michael Sirr – Canberra

" Excellent product. We are very happy with the security lights we had chosen to be installed around our church. All parishioners who come to our evening masses really liked the quality. Customer service was also excellent! "

Fr. Belonio – Holy Spirit Parish, St Clair NSW

" We installed the Alpha 6 Courtyard light. We are all so happy with it. Apart from looking good, it has the perfect amount of light, and it automatically turns on every evening. It was easy to install & gives us all a sense of security. (see images on our projects page) "

Pam Hailey

" These days it's so hard to find a company with excellence in customer service. Your company epitomises this. It makes me so proud to be Australian when we have companies servicing us like yours. Well done "

Mark and Pauline Starkey

" Easy to install, very impressed with the light output from the 30watt batten light fitting and will definitely purchase again "

Steve Parker – Stanke Group

"We have installed the first batch of Orion Premium solar lights at our development, and they look great. (see images on our projects page) "

Kelvin – MMG Property

" The 60w Atlas are installed and they are great (see images on our projects page) "

Ben – Darwin Turf Club

" The Solar Batten Lights worked out really well in the BBQ area with a quick install time and the finished product looks very professional. (see images on our projects page) .“

Kevin – Burdekin Shire Council

"Great solution for removing a diesel powered lighting plant and utilise solar for our water fill point and working towards reducing our carbon emissions.“

ian murray - thiess pty ltd

SOLAR LIGHTING DESIGNS

Products

Solar Street & Area Lighting

Solar Courtyard, Billboard & Sky Lighting

Vandal Resistant Lighting

Solar Bollard & Walkway Lighting

Solar Flood & Security Lighting

Solar Road Traffic & Safety Products

Solar Site & Tower Lighting

Solar Batten & Shed Lighting

Projects

NRMA Parks and Resorts Tasmania

Allora Gardens Retirement Village

Merriwa RGB Tree Lighting

Southern Metropolitan Cemeteries Trust

Products

Solar Street & Area Lighting

Solar Courtyard, Billboard & Sky Lighting

Vandal Resistant Lighting

Solar Bollard & Walkway Lighting

Solar Flood & Security Lighting

Solar Road Traffic & Safety Products

Solar Site & Tower Lighting

Solar Batten & Shed Lighting

Projects

NRMA Parks and Resorts Tasmania

Allora Gardens Retirement Village

Merriwa RGB Tree Lighting

Southern Metropolitan Cemeteries Trust

SOLAR LIGHTING DESIGNS

BLADE 40W SOLAR LIGHT V2

Product

Solar Lighting Designs

Solar Lighting Designs

©2024

Product Description.

Technical Data

Lighting Distributions

Video

Printable Data Sheets

40W-Blade-Specification

Additional Information

Projects using this product

FDC Construction & Fitout Installation

Woolooware Golf Club

Club Austral Lighting Project

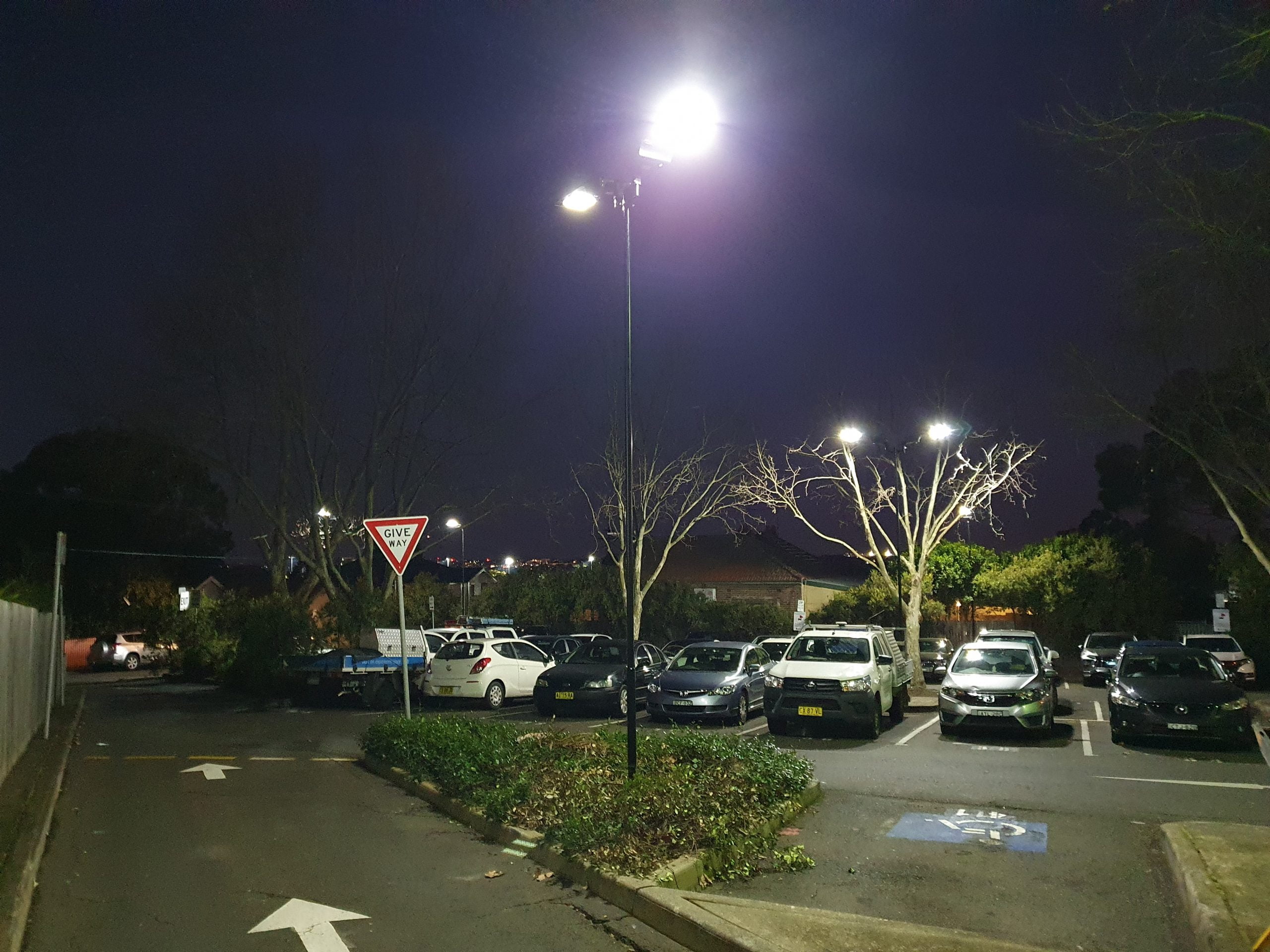

Burwood Council Car Park Lighting Project
